A defense for sub-modeled state with a Single-Store-State application structure

September 24, 2015

context

@danabramov recently took the JS community by suprise by proposing a radically simple idea for defining application state. A single, simple, serializable object could define the state for an entire native web application. That is to say, plug a state object into your app and it should be able to render perfectly into that state. State becomes immutable in this strategy, and we re-render on state changes.

Most of us web developers are very familiar with maintaining state all over the place. For example, we often maintain state in controllers, in the DOM, and even in the window. For some of us, we even maintain state in objects that are designed entirely to maintain state. Think ampersand-state or backbone Model. The proposal to use a single store of state, hereby SSS (because why not!), is an intuitive and desirable condition for developers to have in their app.

challenge

If we buy into the immutable proposition for our native web apps that Dan proposes, does that mean that there's no room for our existing tools?

As often the case, the answer to above question depends on the rules that the developer or team decides. I'm a big fan of ampersand-state, so I will speak in the context of that. For those who are not familiar with it, let me elaborate on some of its features. Let's see how it was used traditionally before I propose how it can be used in the context of a SSS application. If you are familiar with backbone Model, ampersand-state overlaps heavily, so please feel free to skim!

ampersand-state as a data modeler

From the docs:

ampersand-state: An observable, extensible state object with derived watchable properties.

Pretty simple definition. Nothing immediately raises red flags that says this tool violates a redux-like pattern, beyond the word "state" itself. Let's talk about some major features as they pertain to data-modeling and application interaction:

  • defined, assertable properties
    • you can specify properties on your data-model. Let's use a File as an example. I can define size, sha, and pathname as attributes. I can declare their types, and mandate that they are present. What value does this give me?
      • Validation, attribute-definition-wise. No required value can be left out due to user forgetfulness, API changes, etc.
      • Validation, type-wise. If size is a number in kilobytes, it will Error out if I accidentally enter string.
  • derived attributes
    • composite attributes that are computed based on other bits of the Model definition. I commonly use PouchDB, which requires a unique _id when putting data into the database. In the File example, I really want to make sure that I don't put the same file in twice. Therefore, I specify _id as a derived attribute to proxy sha. There are other ways to handle this, but boy, that was easy!
  • custom serialization
    • ability to convert your Model into a raw JS object ( customizable).
  • collections
    • yields powerful set operations over Models, or raw data. Sometimes basic array operations just aren't enough to efficiently meet your needs. I'll let the ampersand-collection API speak for itself.
  • eventing
    • a killer eventing system is built in, so you can deploy actions based on model changes

These are only some of the features it offers. This isn't an article on &-state though. Per review of the above, you can see that pre-2015-bleeding-edge tooling exists to give your data structure and power. These are useful features that I shouldn't dispose of. The immutable app model proposed by redux has a simple mantra--let state be expressed in a simple store. Is there a way I can still exploit the benefits outlined above, but not let my Models define the actual application state? Yes, I argue that you can.

data models in the redux flow

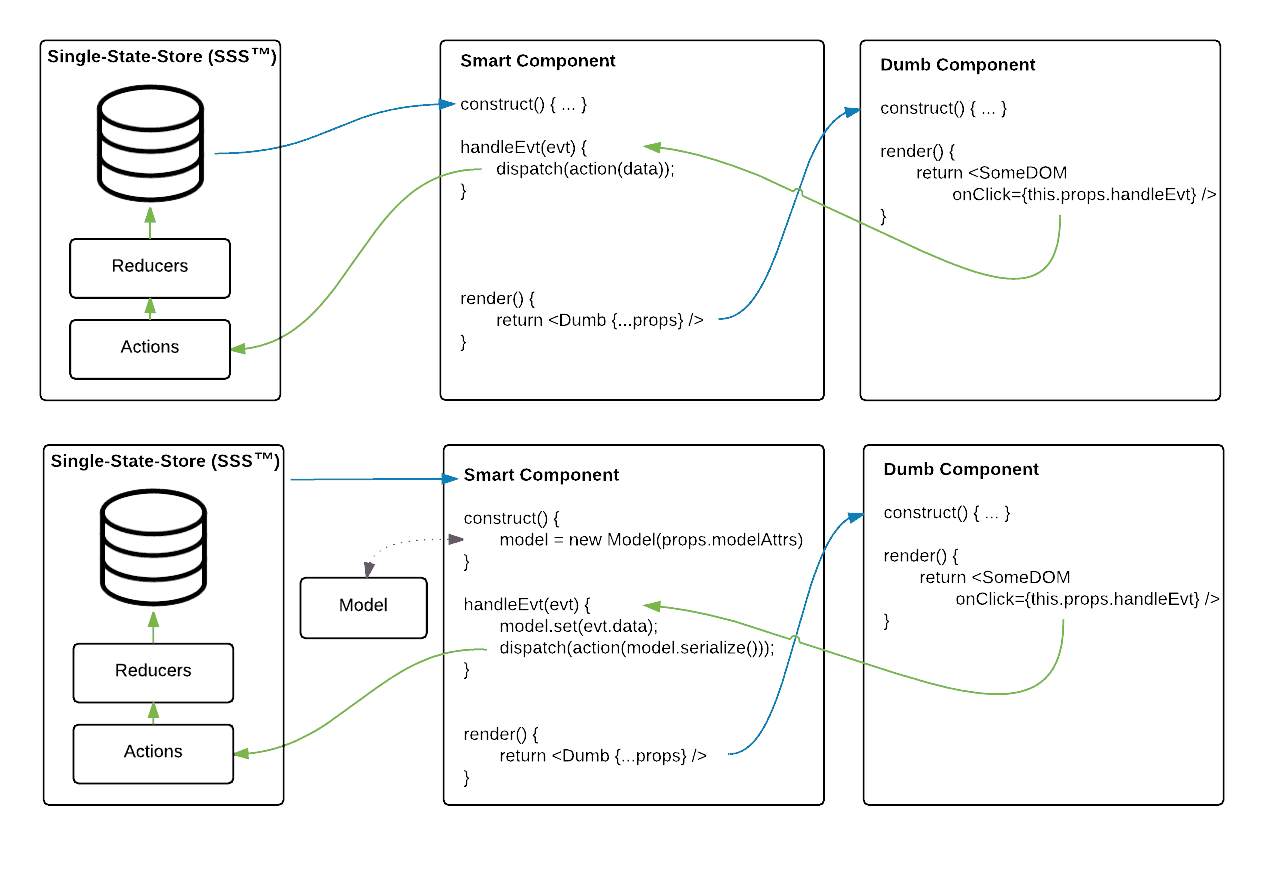

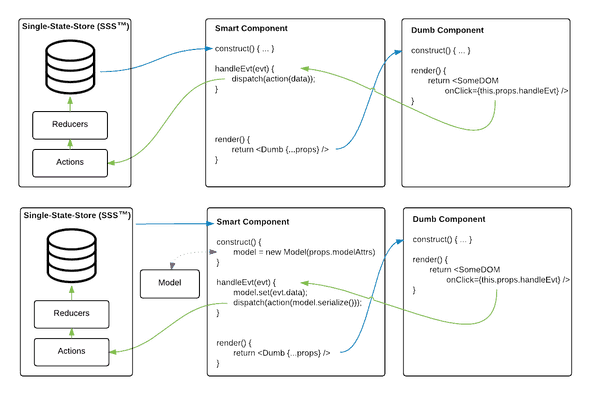

Let your data models be intermediaries. To best see this in action, let's study the following two diagrams. The TOP is the default redux flow. The BOTTOM is the redux flow using models as an intermediary data model, such as &-state.

redux data modeling

Consider the bottom image. State is read from the store, then some bit of that state may be transformed into a rich Model object (see the constructor). The props to my smart component are still passed to the dumb component as usual. The key difference is that UI changes that impact your data-models now don't go directly into the app-state via actions. Instead, UI events that result in data-model state changes first get set into the model, and then actions consume data from the data-model, not the event. Your model must provide a one-way flow from the UI into actions/actionCreators. You should almost never have to pass your data model down to your dumb components, otherwise you may have missed the point. There may be cases where your dumb components need access to a derived attribute from your model. These cases can often be prepped in your smart controller and passed through via composition.

weaknesses of the no-model flow

"OK. They both methods achieve the same end goal, but your method is more expensive. I still don't see the advantage," you say. Consider if you have multiple views. One view is for uploading the File. Another view allows people to tag the File with data. In the simple approach, a user in one view may dispatch an action setting the File's state to have a file.sha, but in the other view someone may set file.fileSha. Assuming both state updates were dispatched, both sha and fileSha exist in state, redundantly. A rigid data-model prevents that case from existing. Additionally, if you are referencing a computed value such as my _id example earlier, updates incurred because of dependent value changes happen automatically. I don't need to manually apply the recalculation logic in both view controllers--the model does it for me, and when I dispatch an action with my serialized model, I know I'm getting the latest and greatest.

Here's another example of that failure mode. Suppose path is a composite property of dir and filename. If one view updates dir, but forgets to update path, you're in trouble! Cases like this could handled while selecting the component state to compute the derived value. Also a memoized getter on path could sometimes work. However, you have now defined Model definition logic inside of your controller. Boo! Yuck! Similarly, the validation steps discussed above (e.g. protect against crufty attrs like sha AND fileSha) could take place in the action definition function. A weakness of that strategy may be performance penalties or unnecessary complexity, especially given the case where you are just intending to patch model attribute. We won't dive further into that!

weaknesses of the model flow

There are weaknesses in my proposed strategy.

  1. memory. you've defined duplicate state for models that are persisted to the single store. Synchronization between these duplicate state objects may appear like a threat, but if you are rendering nothing from the data-model's state, your rendered state is still a true reflection of the one-source-of-truth.
  2. performance. you're adding the overhead of model-wise validation and serialization of your model every time that it changes via the UI.

I have found neither of the above weaknesses to be a significant performance hit. In profiling a slow application, CPU times in my model internals were not visible in the "CPU-%-by-fn" sorted list. All model internal times were easily dwarfed by React internals, controller activity, and utility fns. Of course, if I start to render huge datasets, I may need to adjust my strategy slightly. I have also been diligent about purging unused state in the SSS by hooking into React lifecycle events, primarily componentWillUnmount.

summary

  • Formal Model definition structures provide great value
    • examples of that value are validation, collection operations, composite/derived properties, and eventing
  • Historically, Models have been used to represent application state. However, they instead can act as intermediaries to retain their features in a SSS app.
  • Models add overhead to your application as state is duplicated for the sake of added functionality. This should be considered before you begin using them!
